102-012 All-copper American light luxury room household silent split lock

Product description

102-012 All-Copper American Light Luxury Room Home Silent Split Lock is a high-end home smart lock. It is a stylishly designed and fully functional smart lock product launched by the brand. It uses exquisite craftsmanship and advanced technology, combined with the design concept of American light luxury style, to bring users a unique smart home experience. The all-copper American light luxury room home silent split lock has an all-copper appearance design. After fine grinding and polishing, it presents a metallic luster, giving people a noble and elegant feeling. Its American light luxury design style is both classic and fashionable, which is very suitable for modern home decoration style, adding a sense of luxury and warmth to the room.

Split lock installation method
(1) Open the lock body hole and the connecting pipe through hole on the door leaf, and open the buckle plate buckle box hole on the door frame.

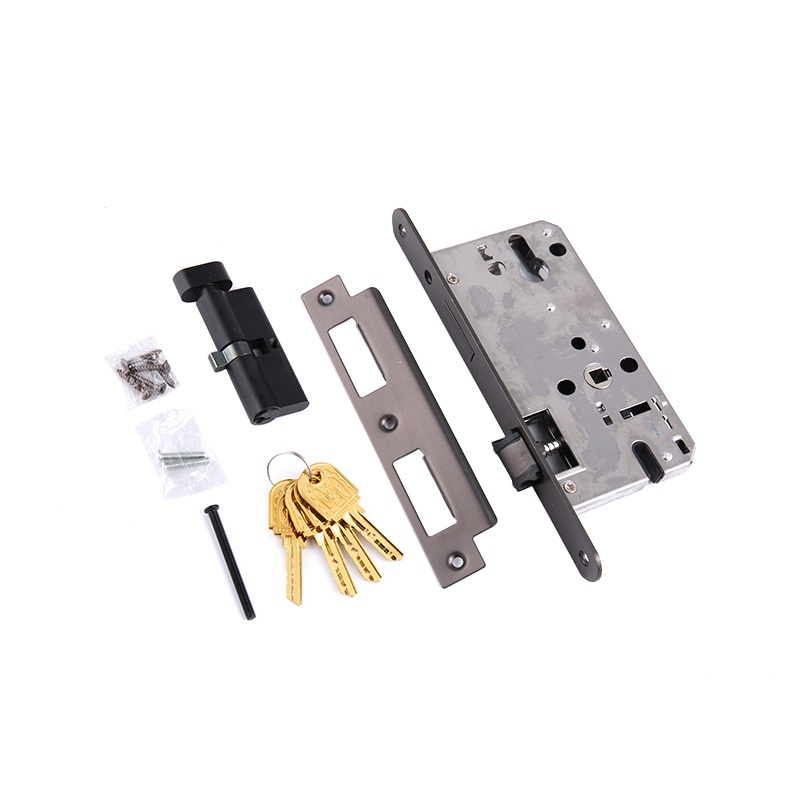

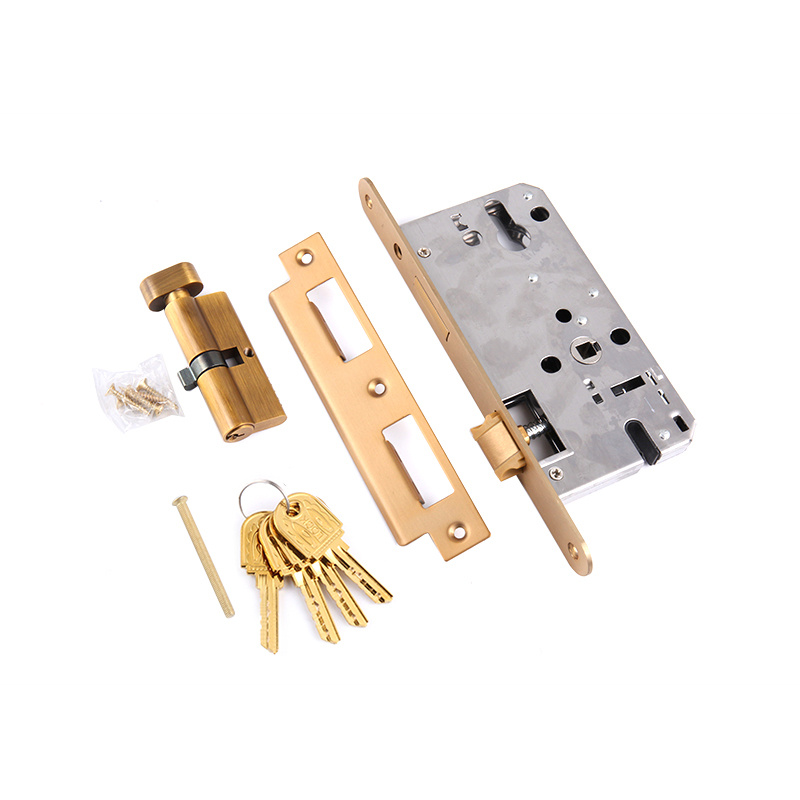

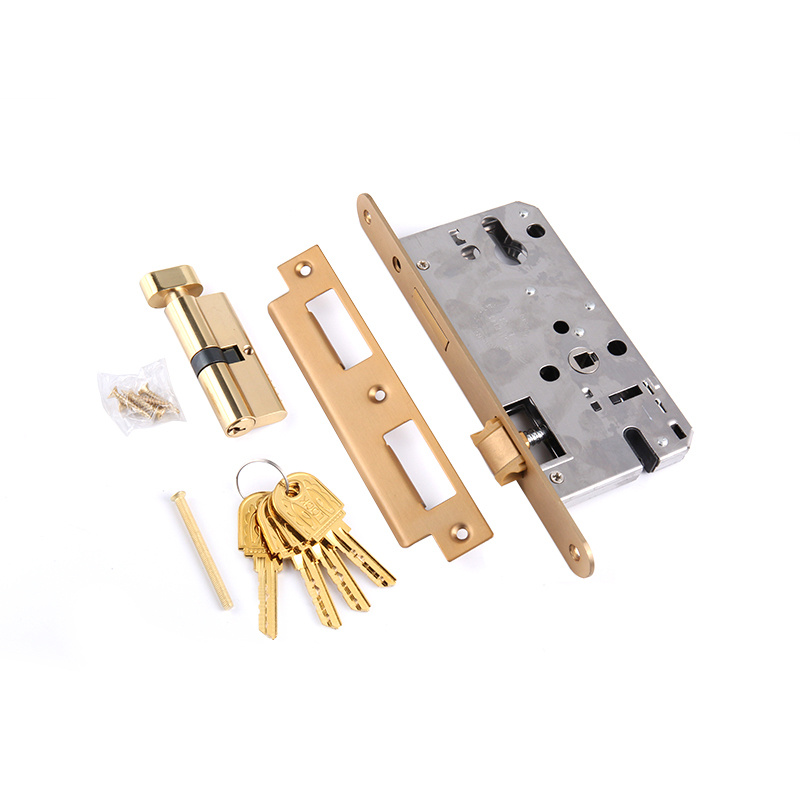

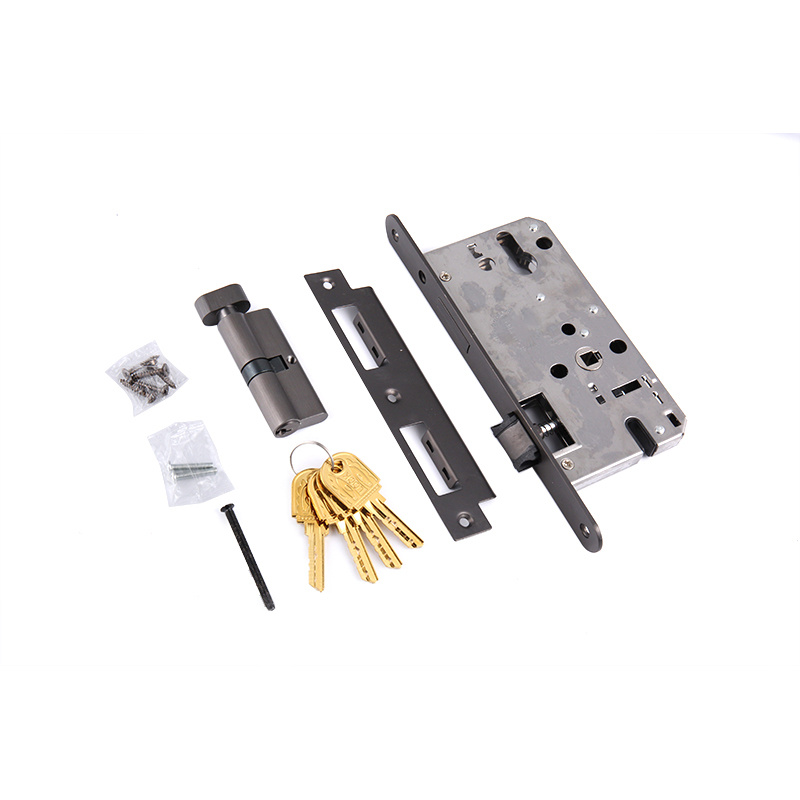

(2) Install the lock body into the door leaf and fix it with the lock body screws; embed the plastic buckle box and the stainless steel buckle plate into the door frame in turn and fix them with the lock body screws.
(3) Fix the connecting pipe to the lining with the matching short screws, and fix the four linings to the door leaf with the matching connecting pipe long screws. (Or fix them to the door leaf with small self-tapping screws)

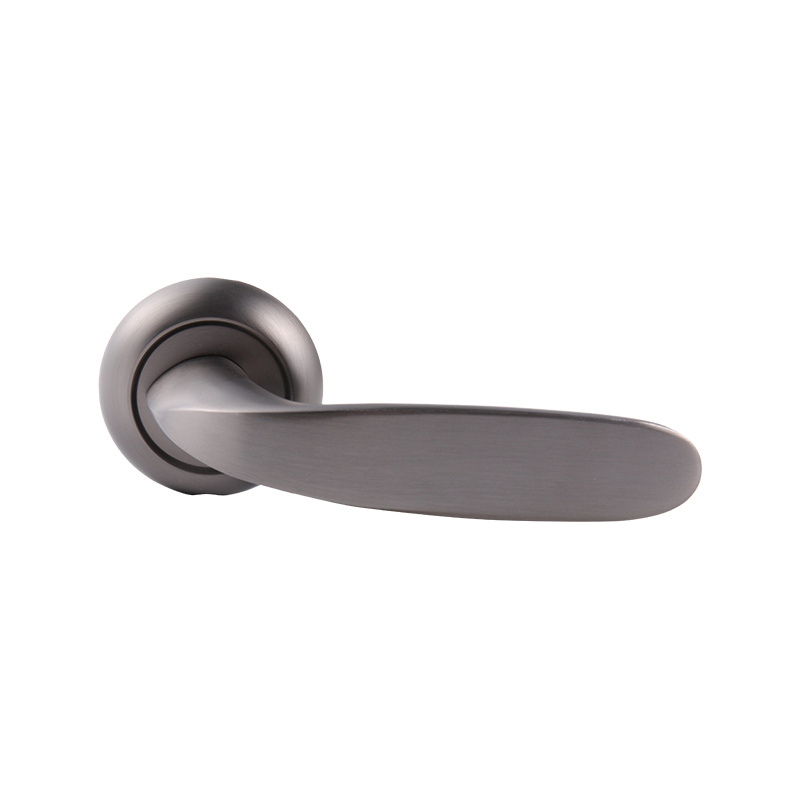

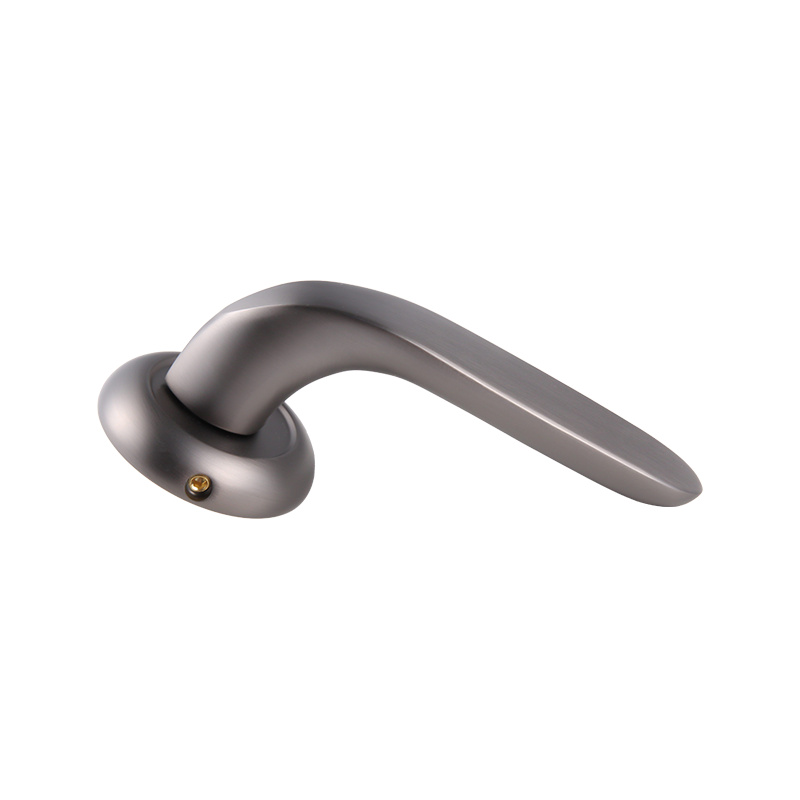

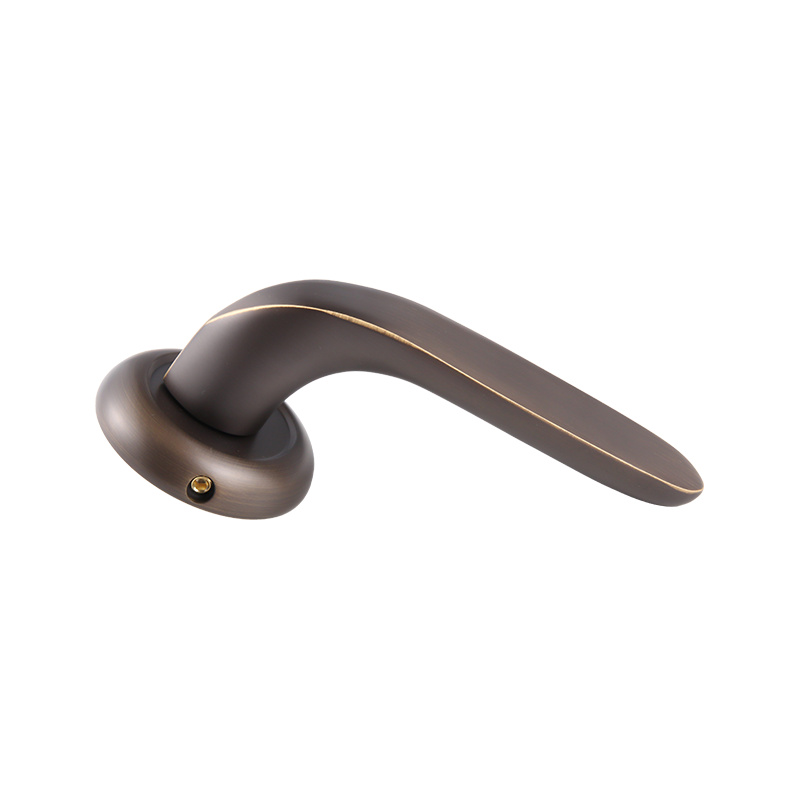

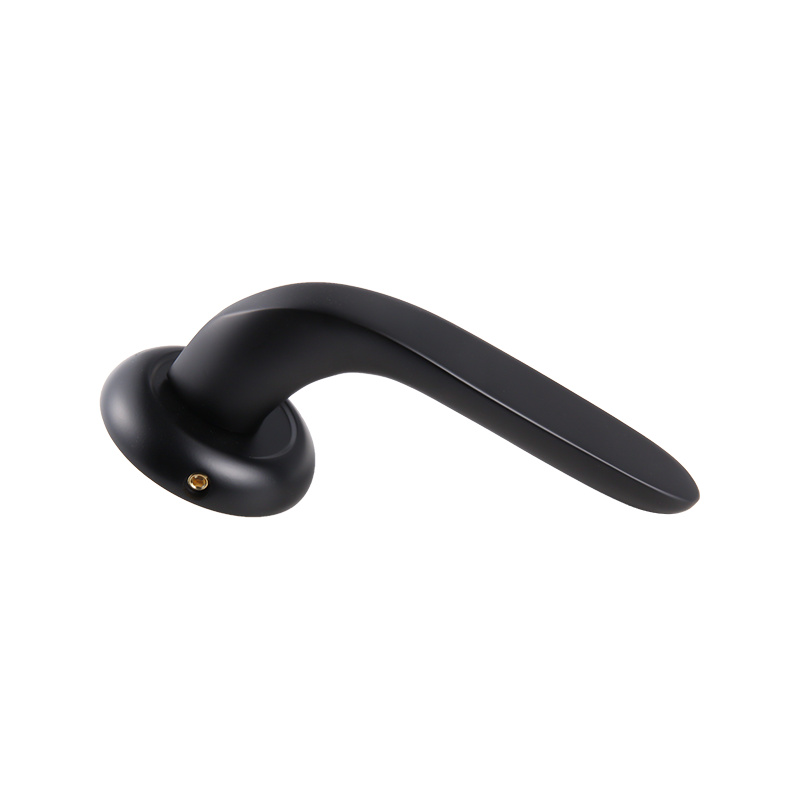

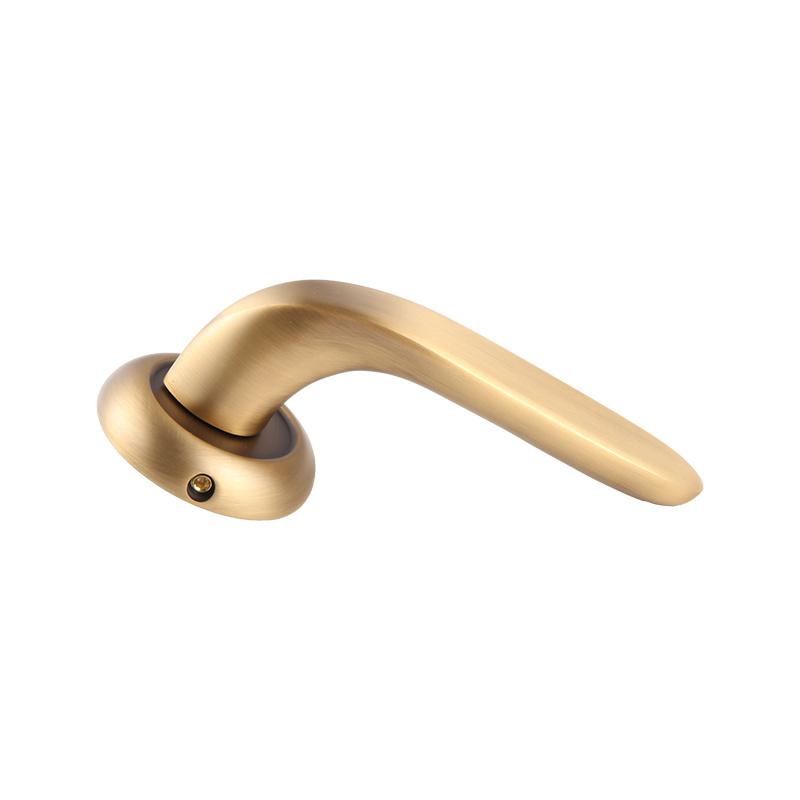

(4) Insert the square bar into a handle ring, align the groove of the square bar with the handle top screw hole, and fix one side of the square bar to the handle with the handle top screw.
(5) Insert the handle ring with the fixed square bar into the square center hole of the lock body, cover the lining, insert the other side of the handle ring into the other end of the square bar, cover the lining, tighten the handle top screw, and tighten the handle ring neck screw.

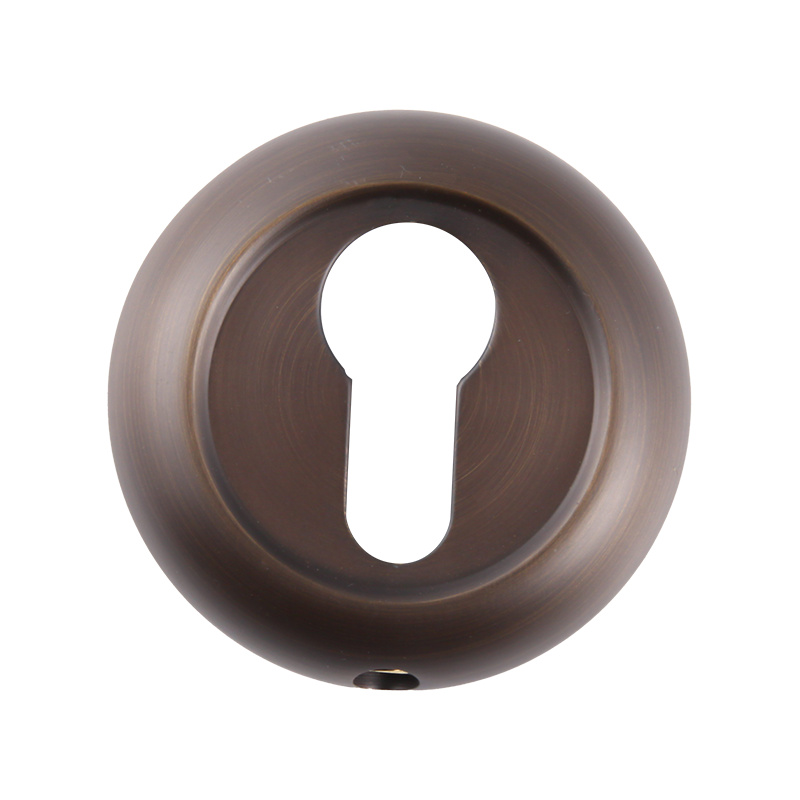

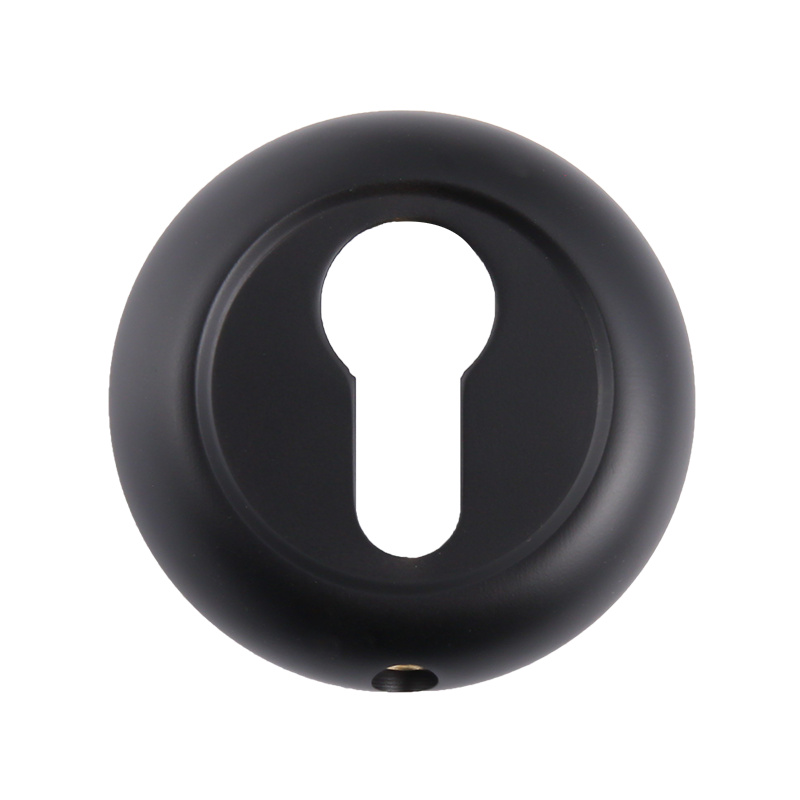

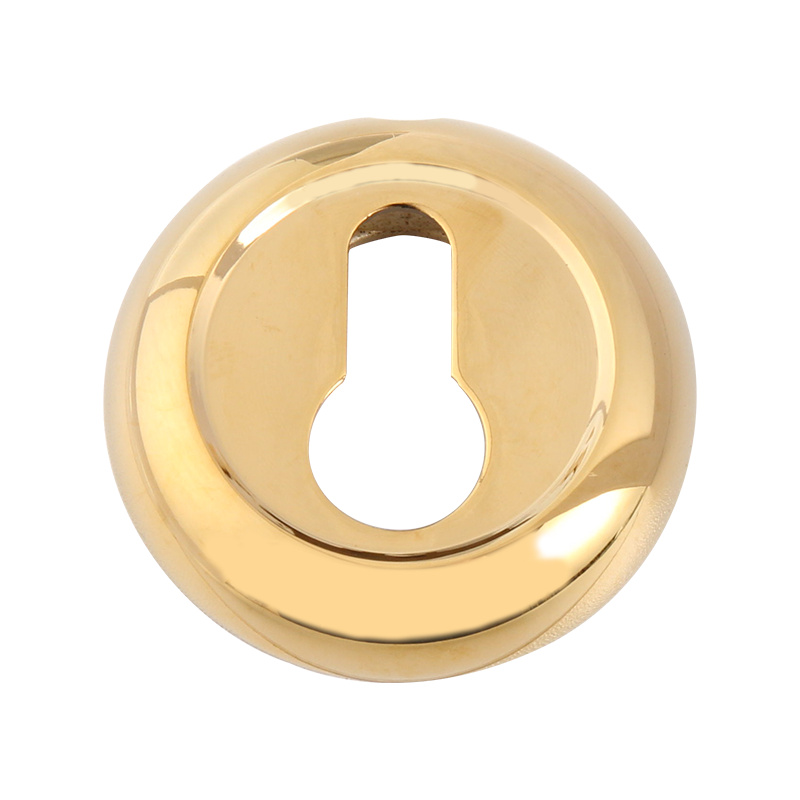

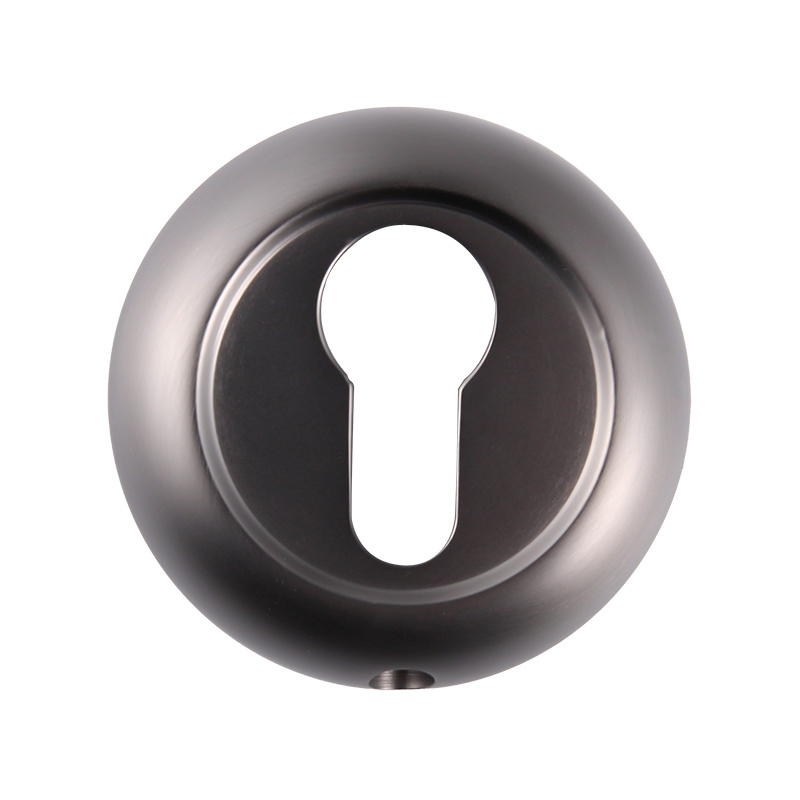

(6) Cover the two lower liners with two gourd hole rings, pass the lock core through the gourd ring, lock body, gourd ring from the room in sequence, and fix the lock core screws, and tighten the two gourd ring neck wires. (Make sure the two are linked and there is no gap)
